Chapter 1 Introduction
Chapter 1 Introduction
What Is an Operating System?
program act as the intermediary between
- user program/applications
- computer hardware
Goals
- exe. user program
- let app. do not have to deal with hardware directly
- ensure efficient resource sharing

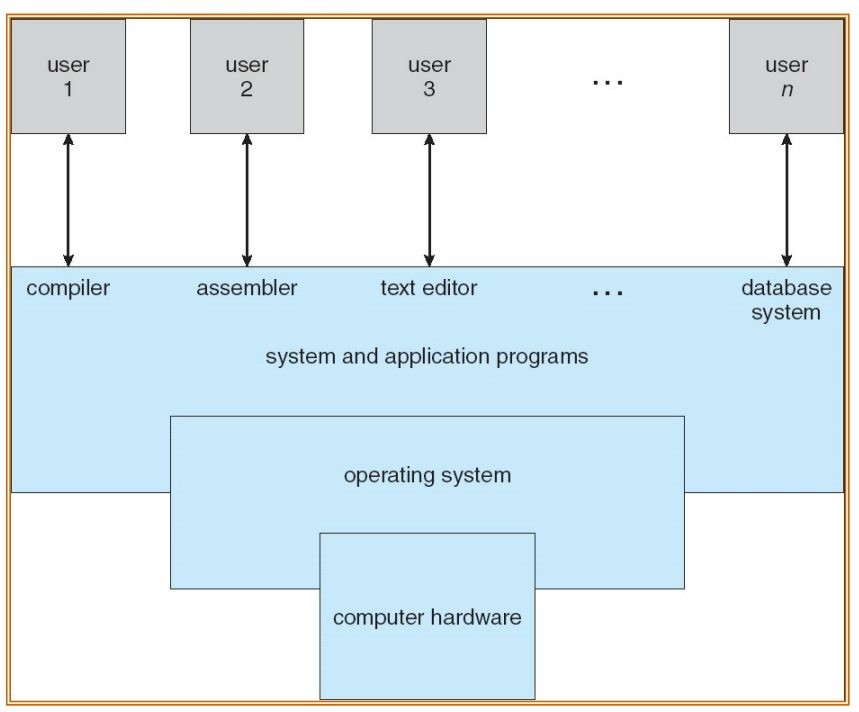

Computer System Structure
4 part(from bottom to up)
- Hardware
- CPU, memory, I/O
- operation system
- Controls and coordinates use of hardware among various applications and users
- system, application program
- Word processors, compilers, web browsers, database systems, video games
- users
- People, machines, other computers
Operating System Definition
The one program running at all time on the computer
- kernal
Everything else
- system program
- application program
2 points of view of OS
- resource allocator
- Manages all resources
- Applications do not have to manage resources directly – OS hides HW interface
- Decides between conflicting requests for efficient and fair resource use
- control program
- Controls execution of programs to prevent errors and improper use of the computer
- other
- monitor the other programs
- allows the other programs to share resources in a controlled manner
- CPU, memory, IO devices…
Computer Startup
Bootstrap program is loaded at power-up or reboot (load OS)
- Typically stored in ROM or EEPROM, generally known as firmware
- Jobs
- Initializes all aspects of system
- Loads operating system kernel and starts OS execution
- called a boot loader
Who loads the boot loader?
- In PC, BIOS loads the (in-disk) boot loader
- In many other platforms, boot loader is placed at a predefined memory address (in ROM or EEPROM)
- Hardware jumps to the boot loader directly
Computer-System Organization

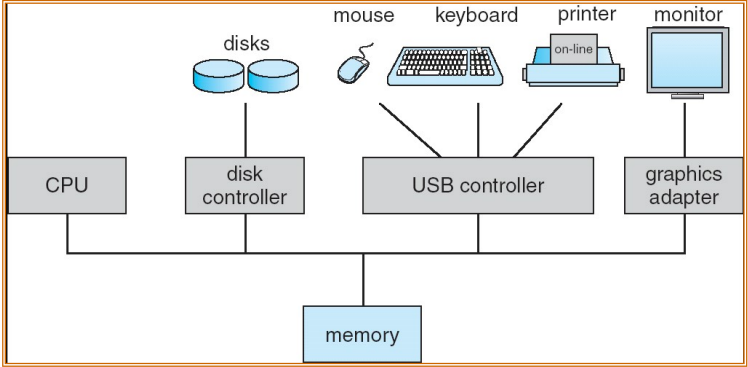

Computer-system operation
- One or more CPUs, device controllers connect through common bus providing access to shared memory
- Concurrent execution of CPUs and devices competing for
bus cycles
Computer-System Operation
- I/O devices and the CPU can execute concurrently.
- Each device controller is in charge of a particular device type.
- Each device controller has a local buffer.
- Writing data to device
- (Device driver running on the) CPU moves data from main memory to local buffers
- Device controller writes the data from the local buffer to the device
- Device controller informs CPU that it has finished its operation by generating an interrupt
- One of the jobs of an operating system is to manage interrupts.

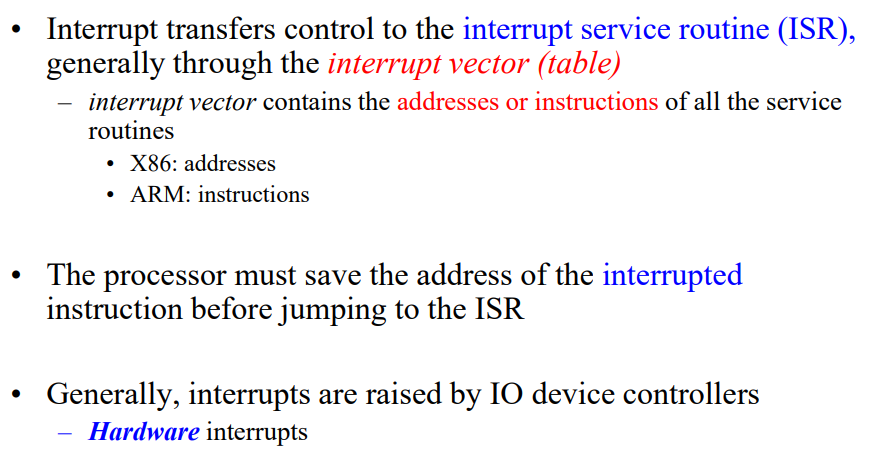

Common Functions of Interrupts
interrupt

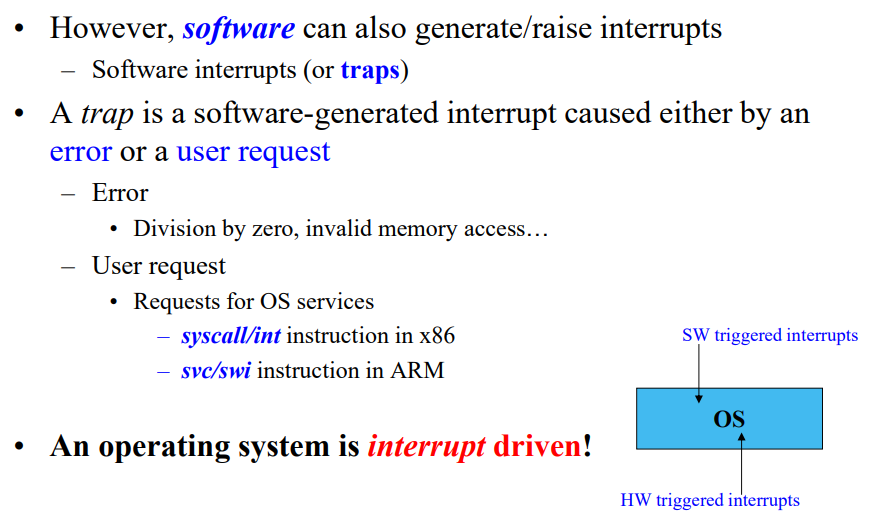

software trigger

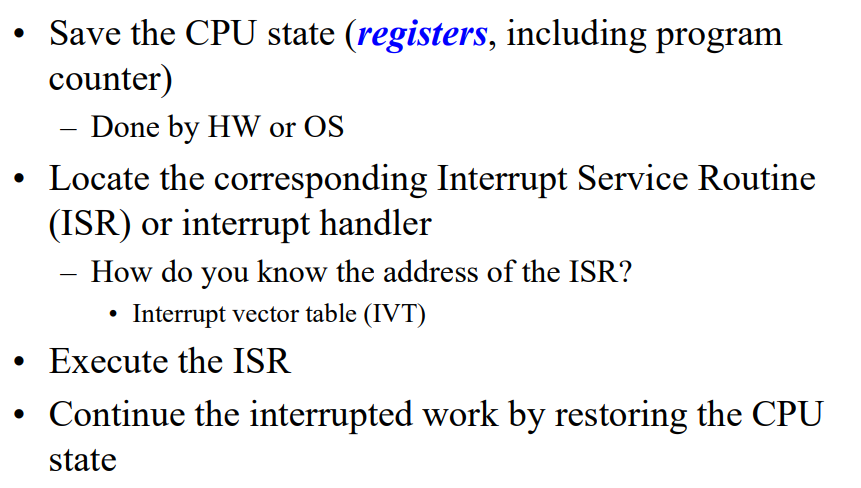

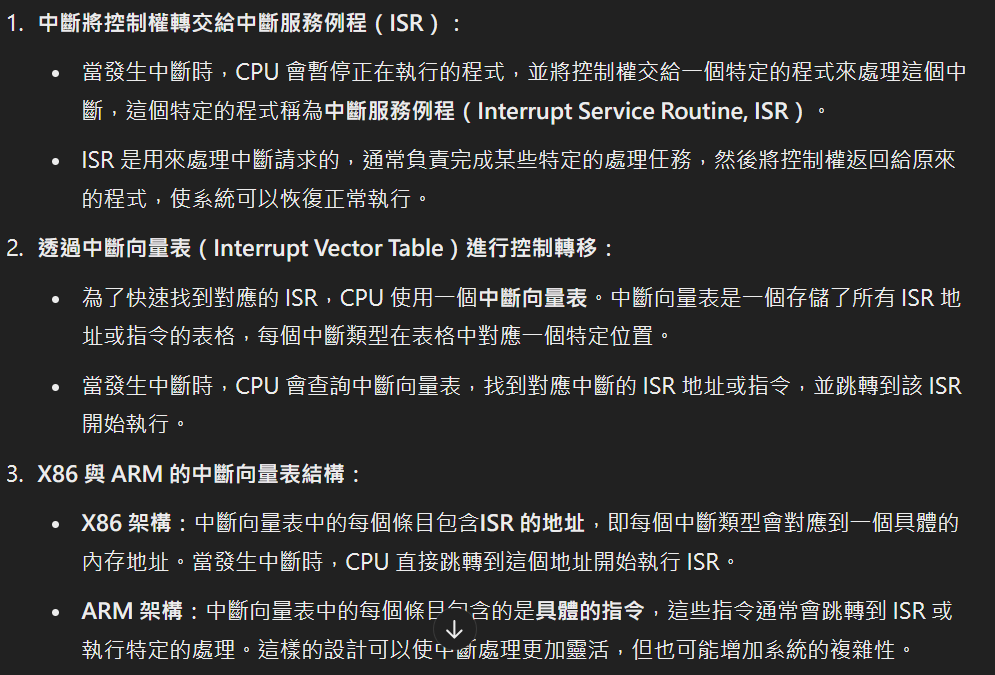

Interrupt Handling

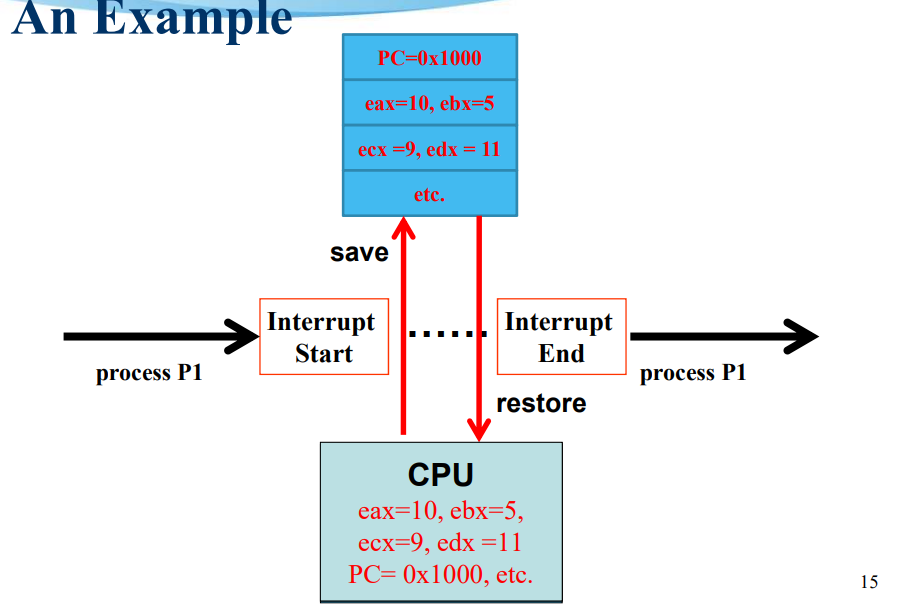

Saving/Restoring CPU State – An Example

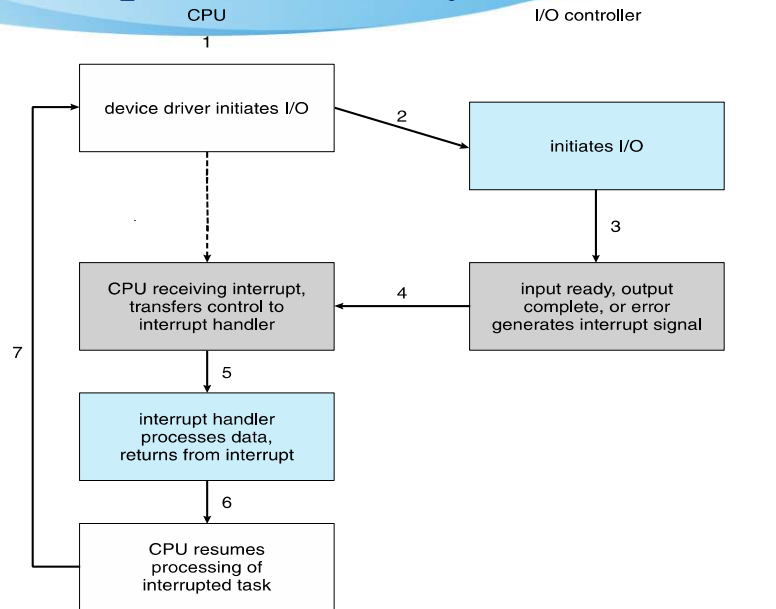

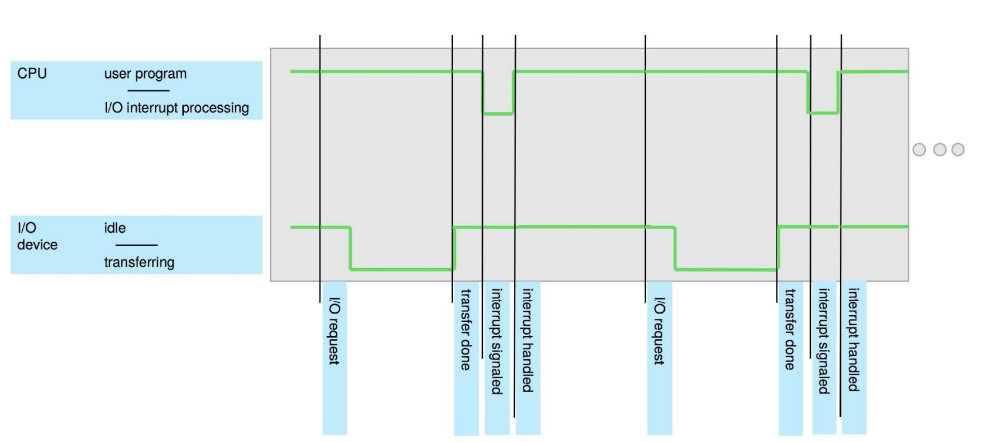

Interrupt-drive I/O Cycle
- timeline

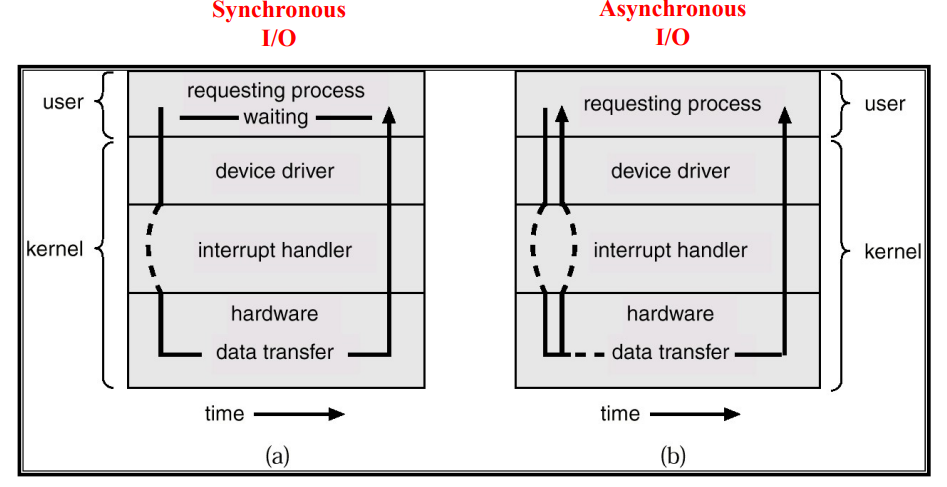

Two I/O Methods

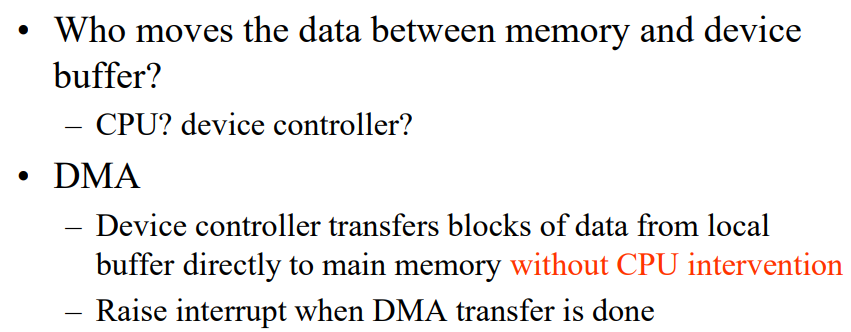

Direct Memory Access (DMA)

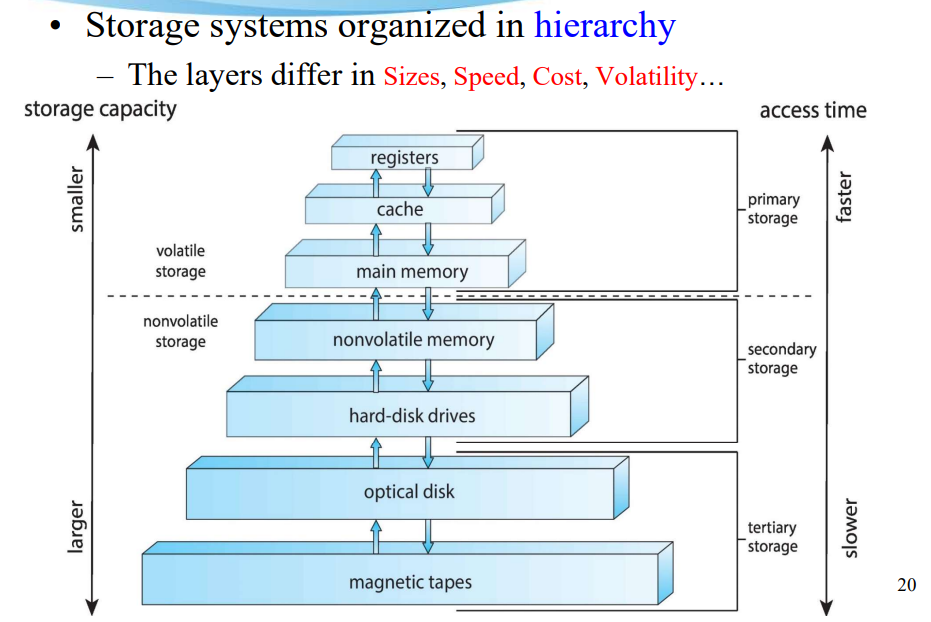

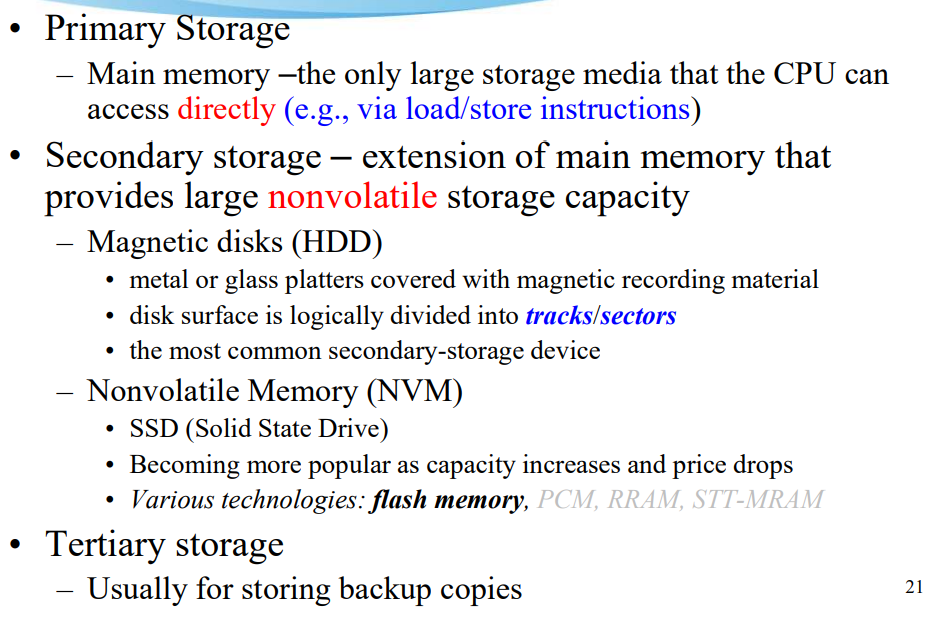

Storage Structure

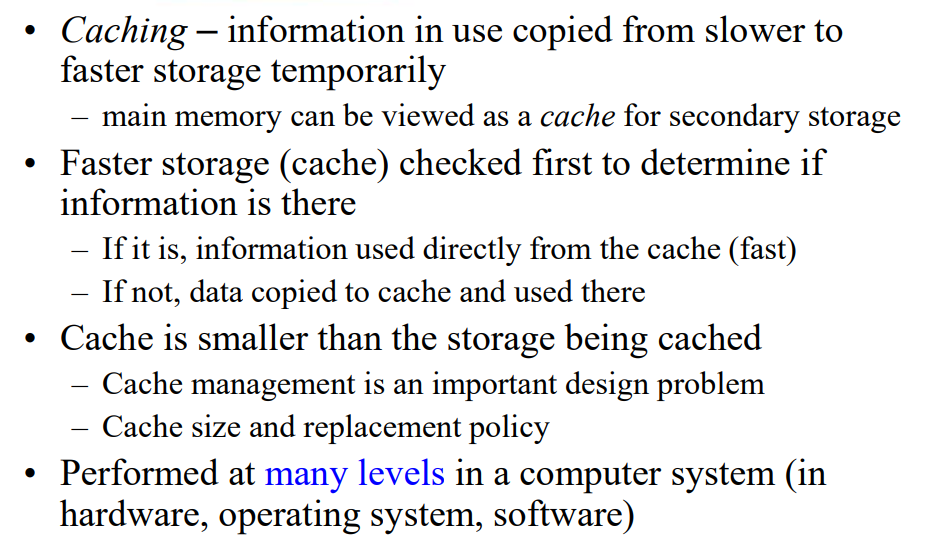

Caching

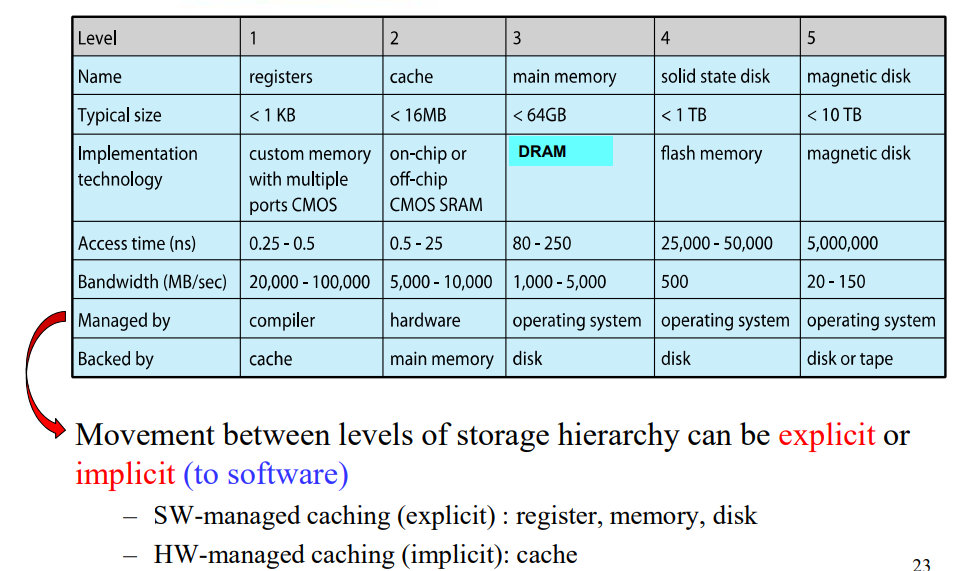

Performance of Various Levels of Storage

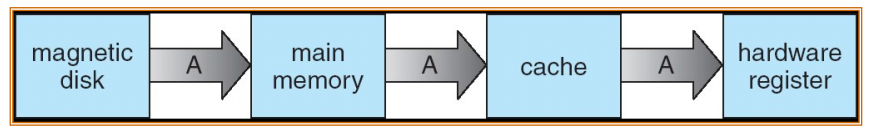

Migration of Data A from Disk to Register

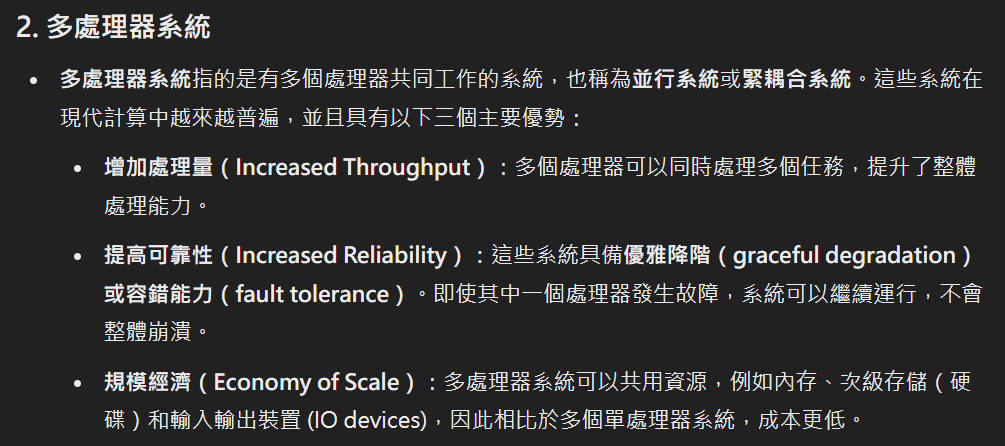

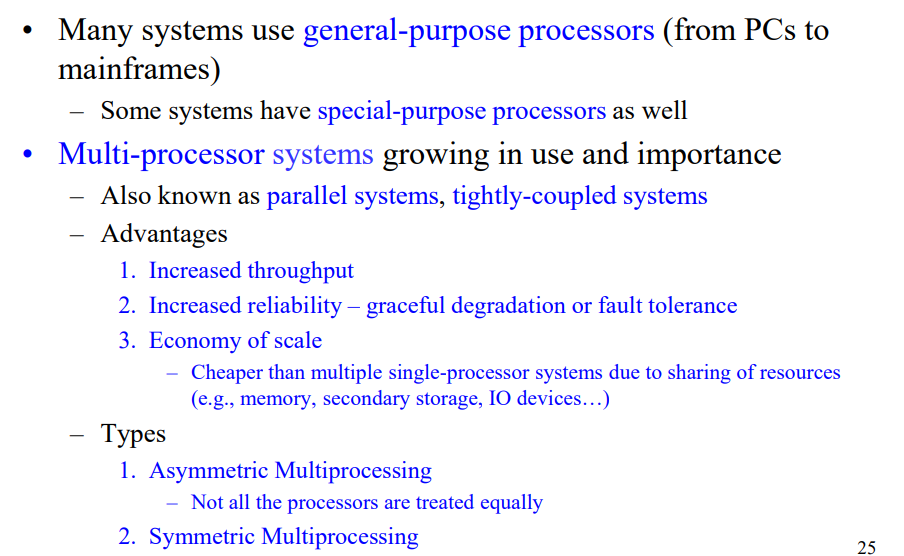

Computer-System Architecture

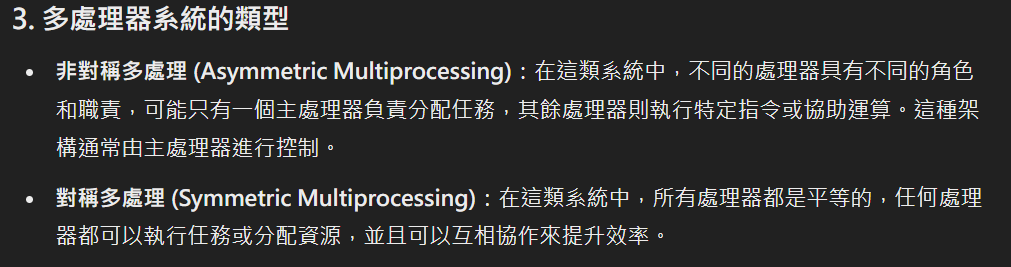

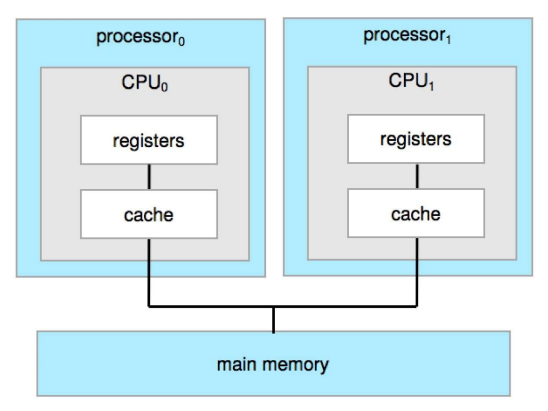

Symmetric Multiprocessing

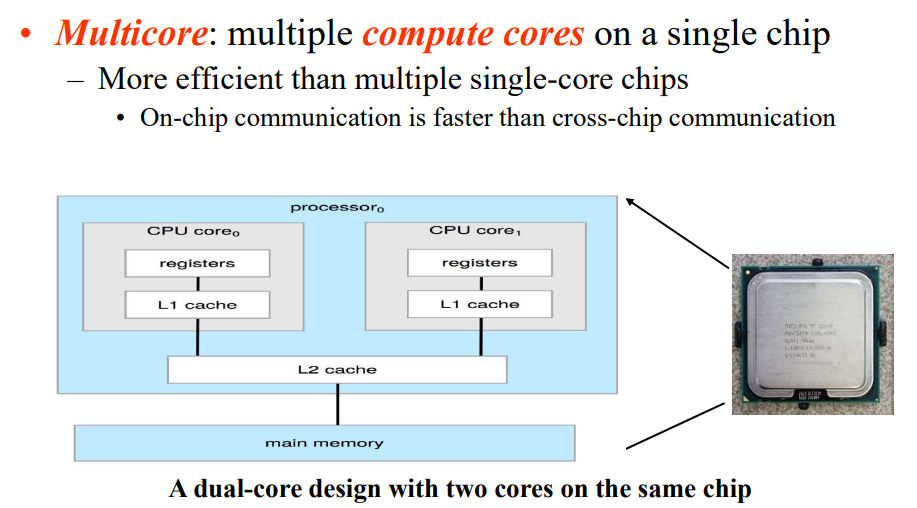

Multicore Systems

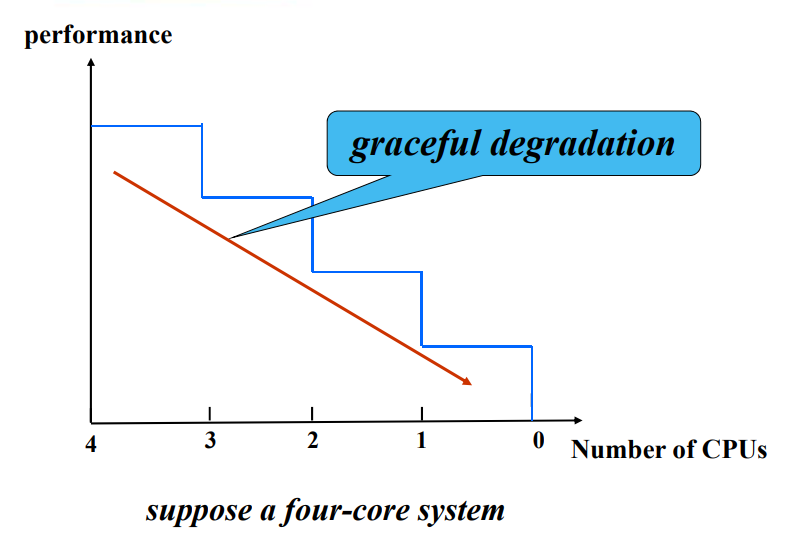

Graceful Degradation

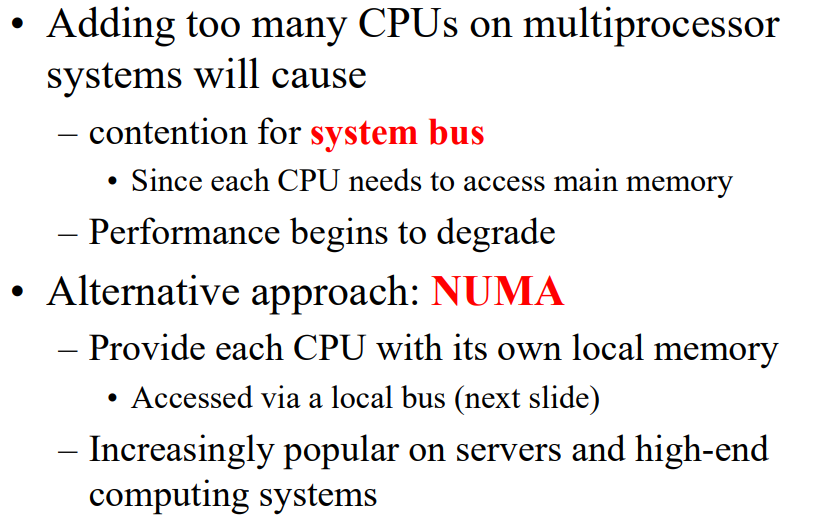

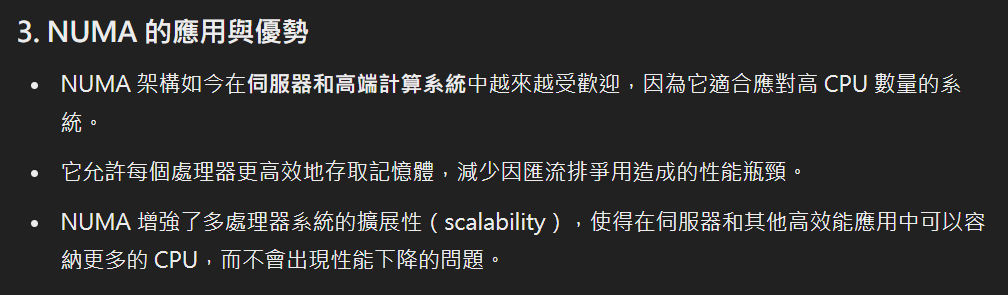

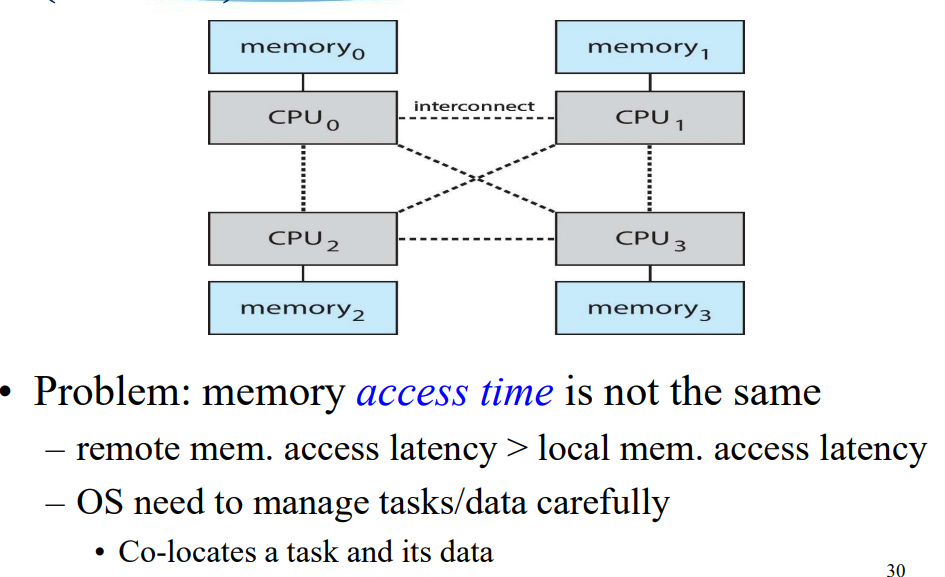

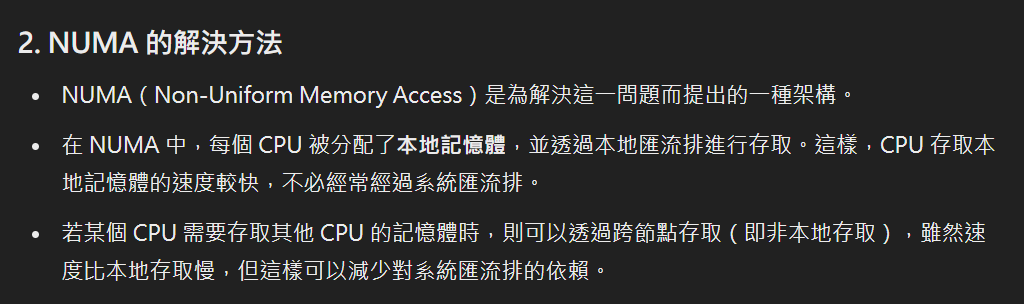

Non-Uniform Memory Access (NUMA)
Problem

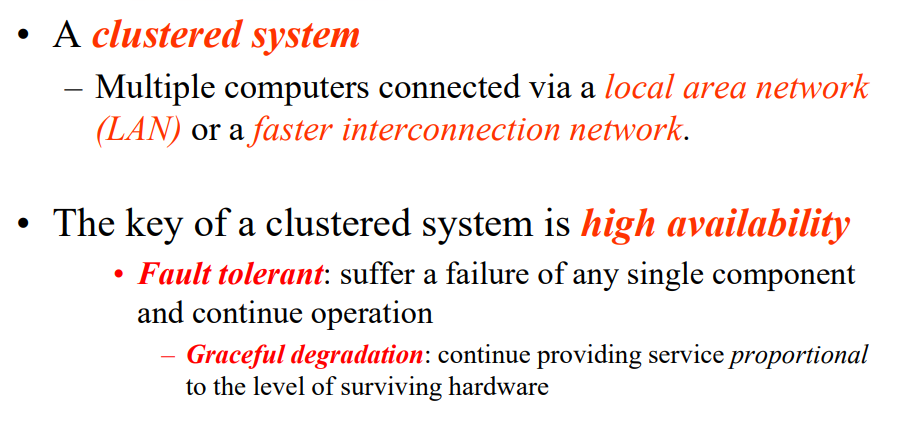

Clustered Systems

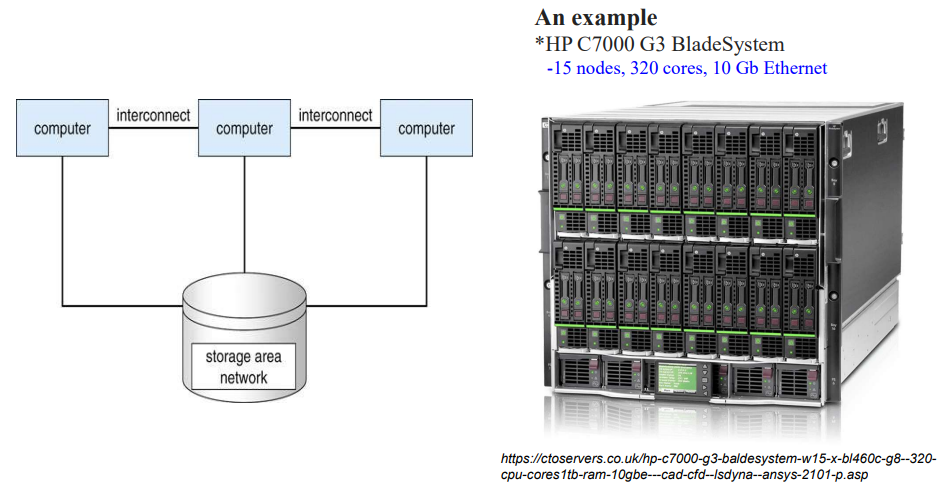

General Structure of a Clustered System

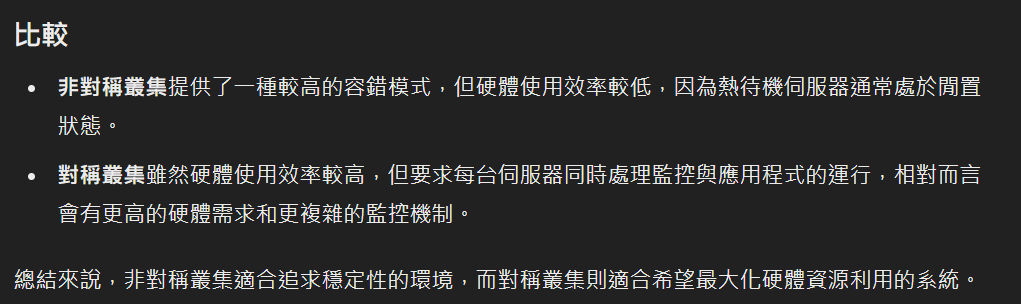

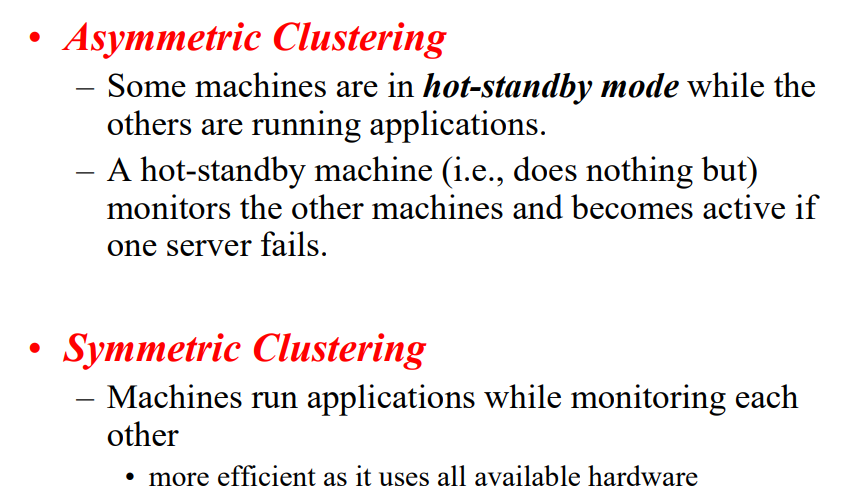

Type

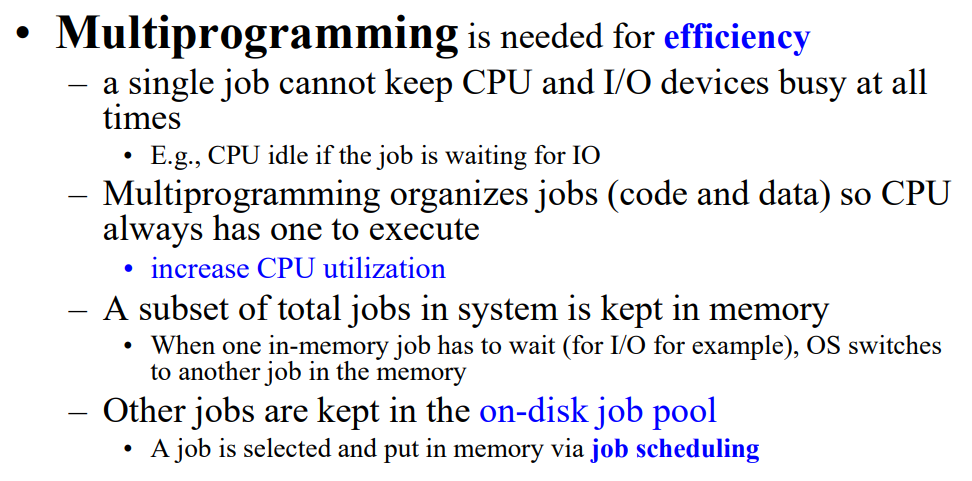

Multiprogramming & Timesharing

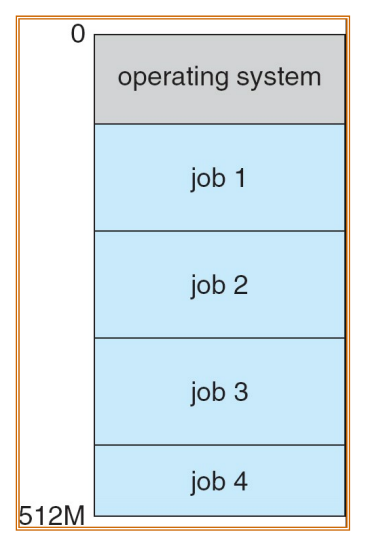

Memory Layout for a Multiprogrammed System

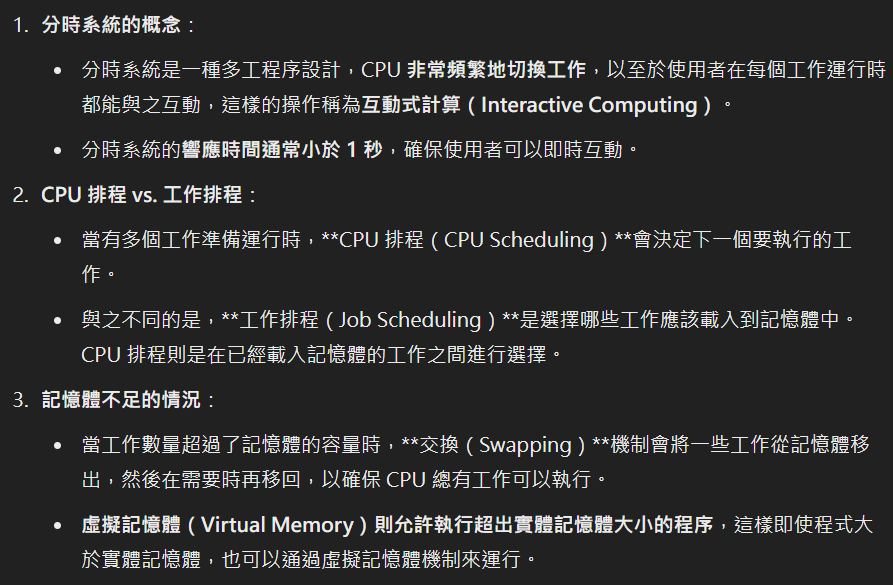

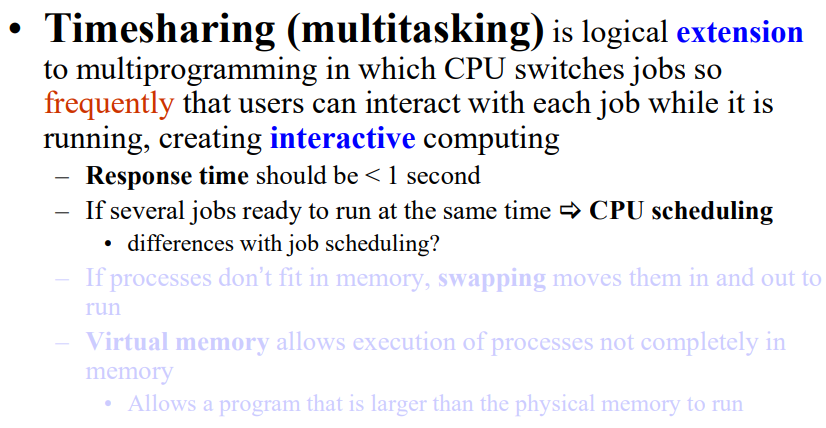

Timesharing

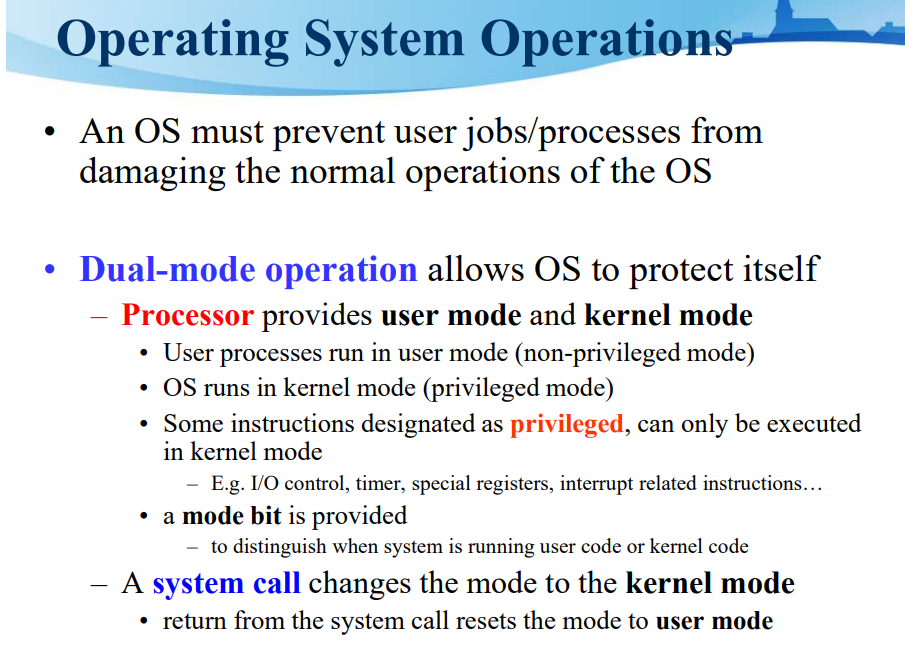

Operating-System Operations

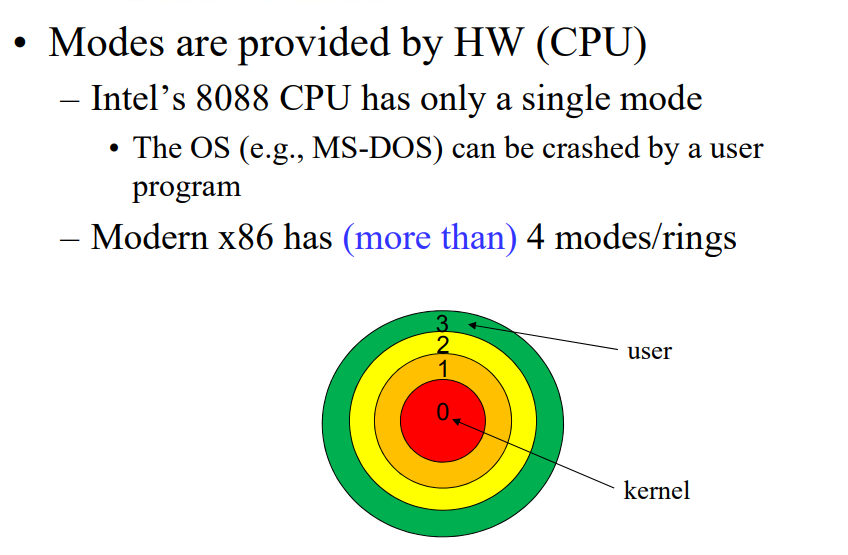

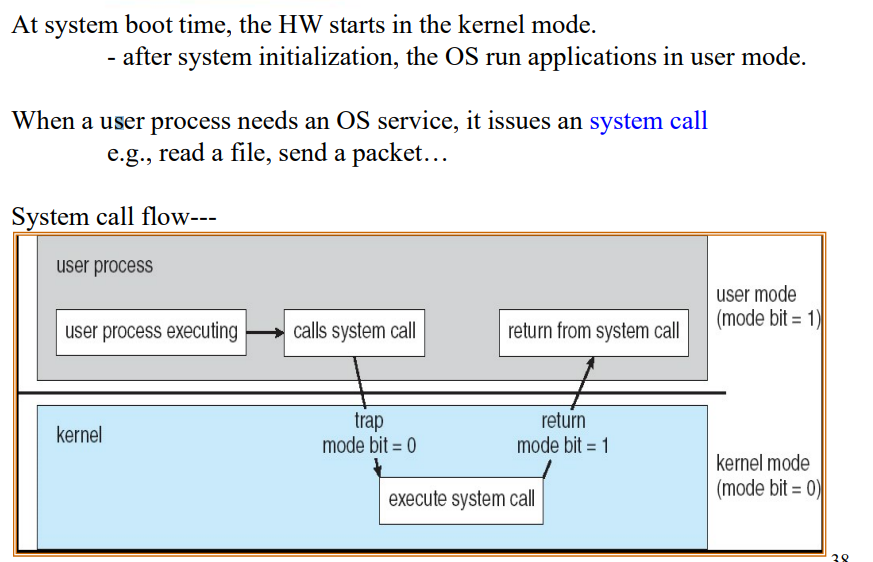

Transition from User to Kernel Mode

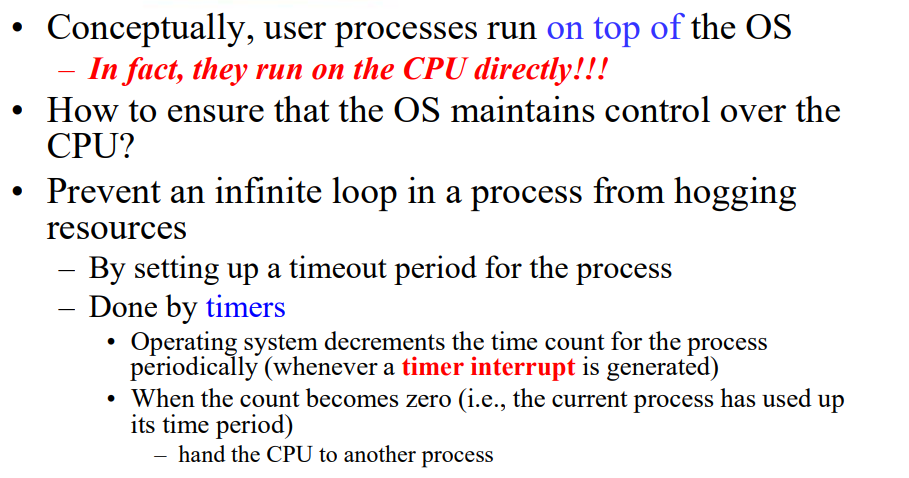

Timers

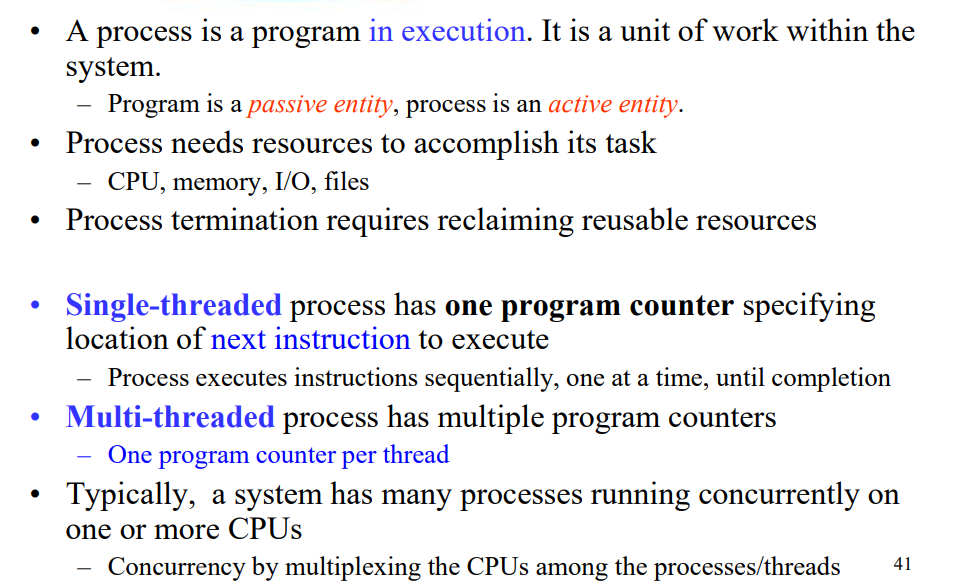

Process Management

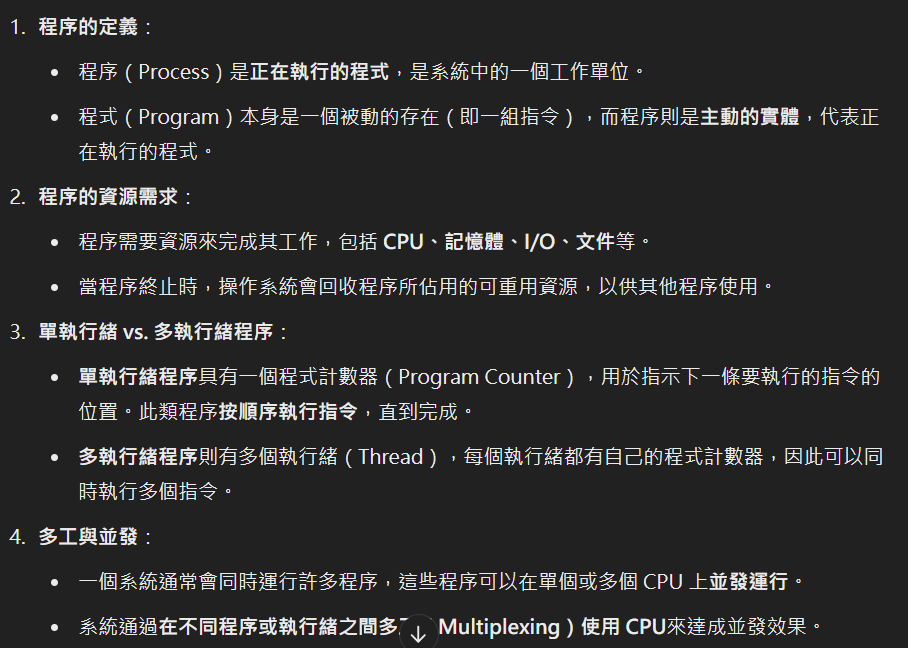

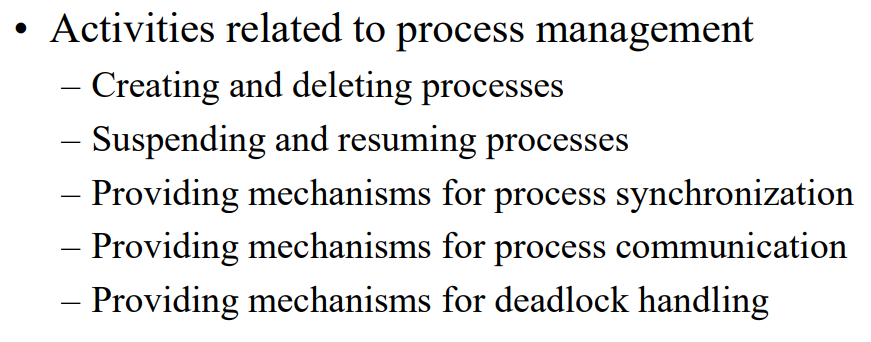

Process Management Activities

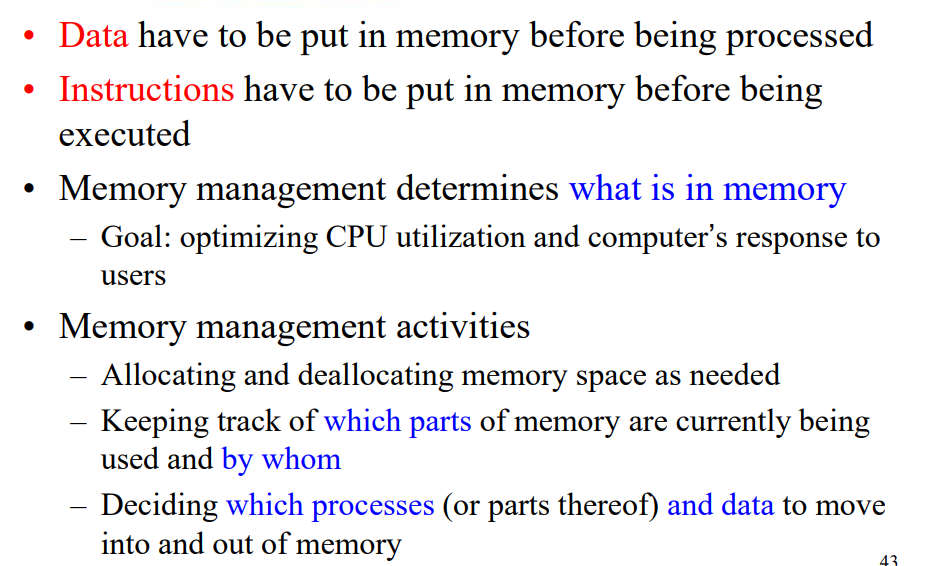

Memory Management

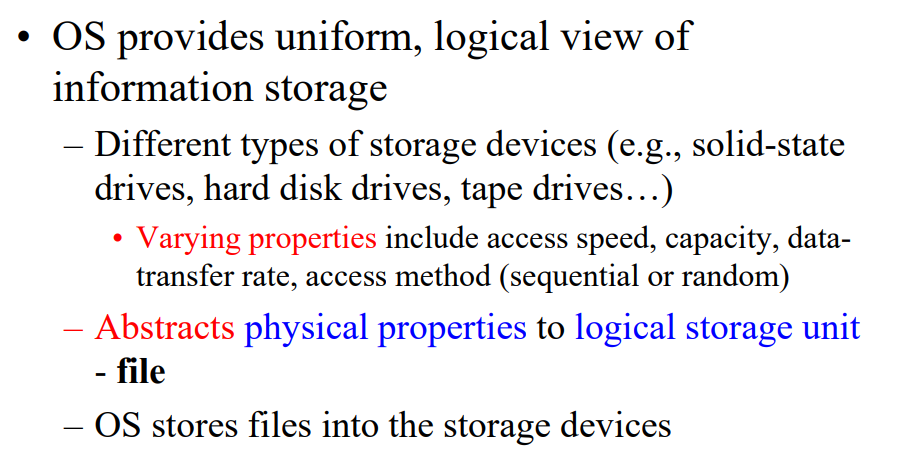

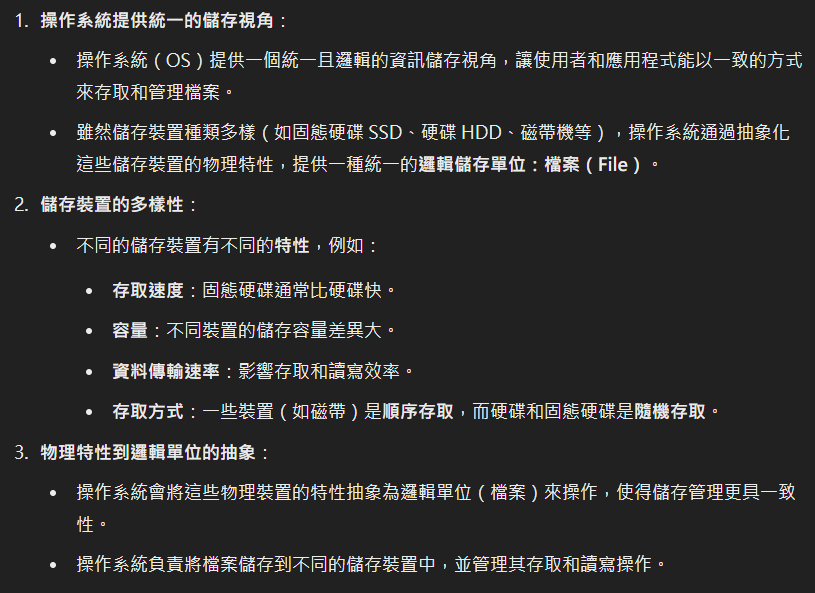

Storage Management

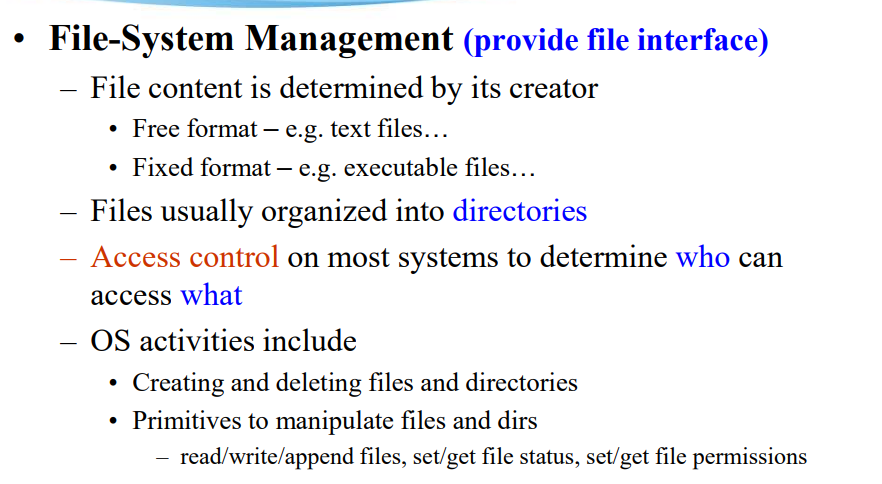

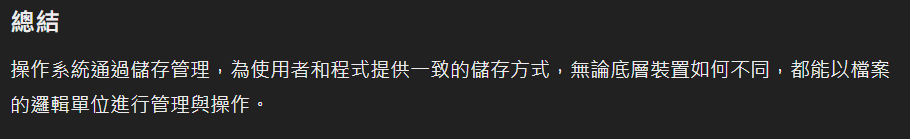

File system management

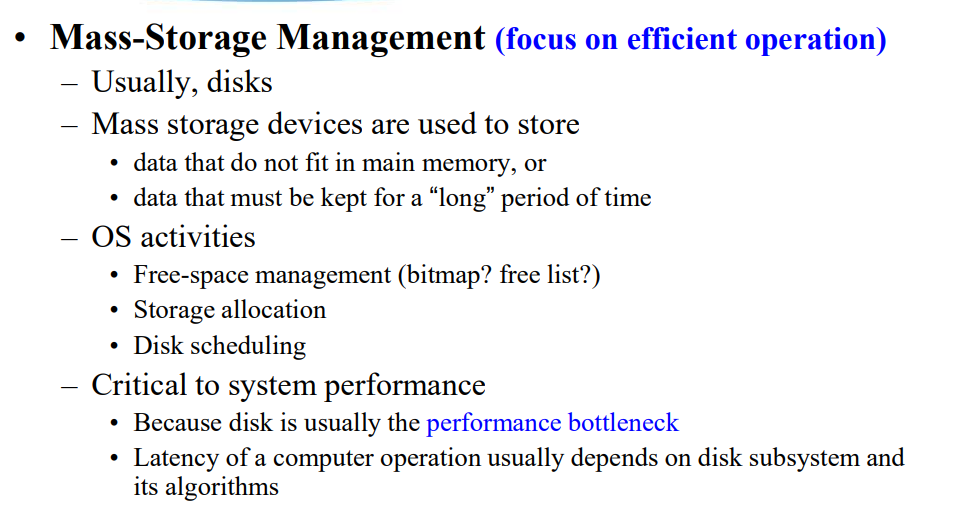

Mass storage management

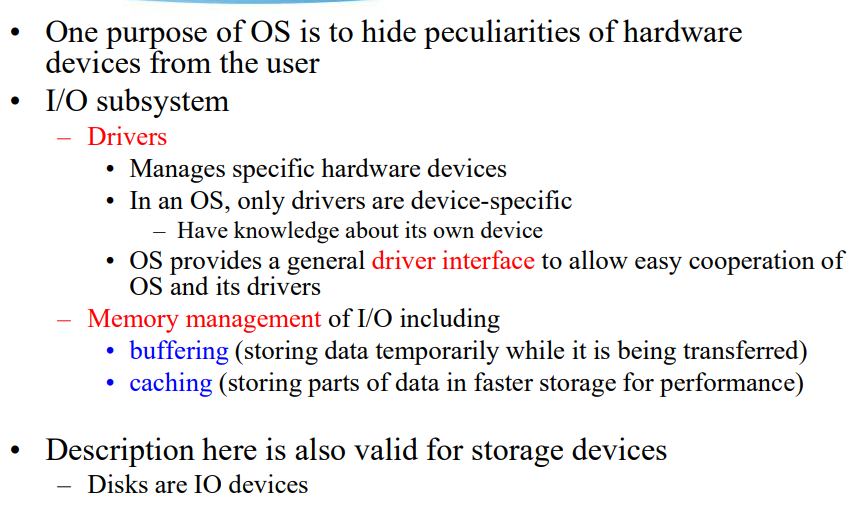

I/O Subsystem

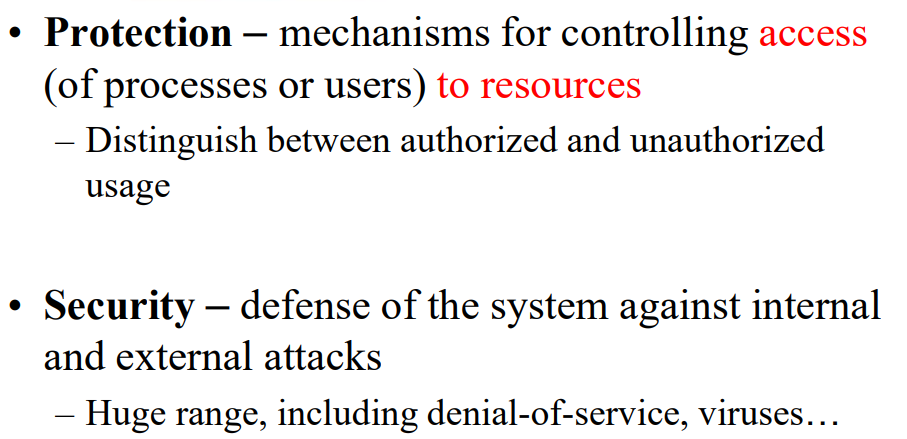

Protection and Security

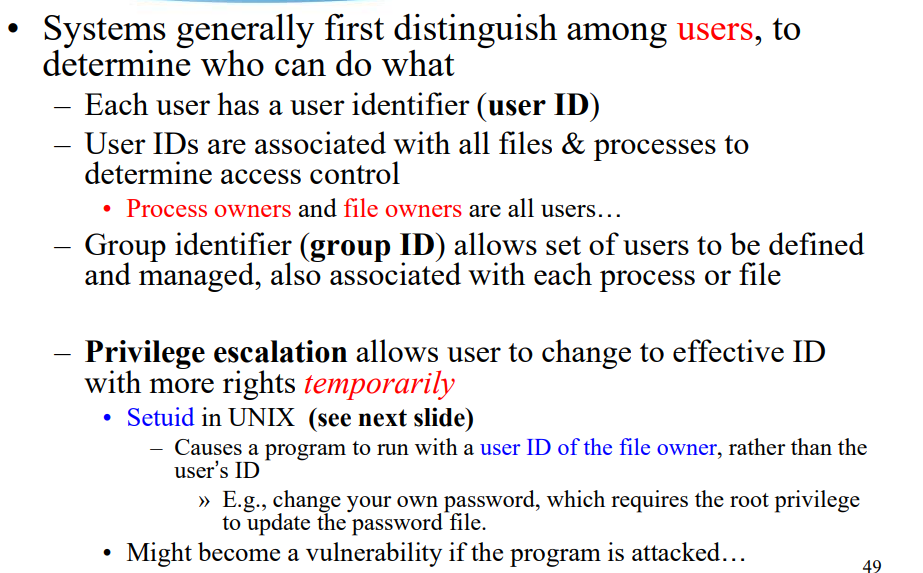

Users

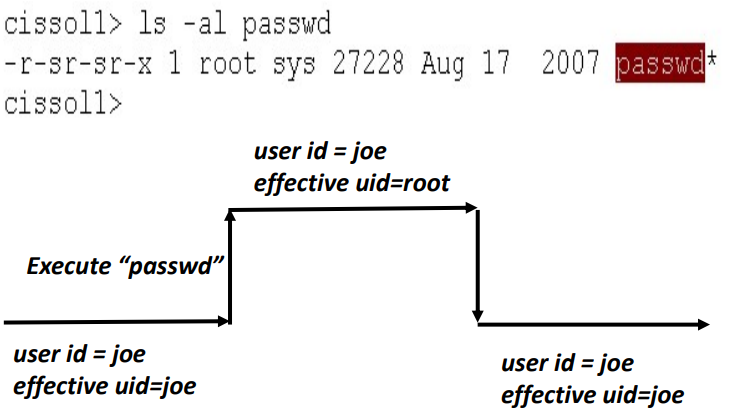

set uid in linux

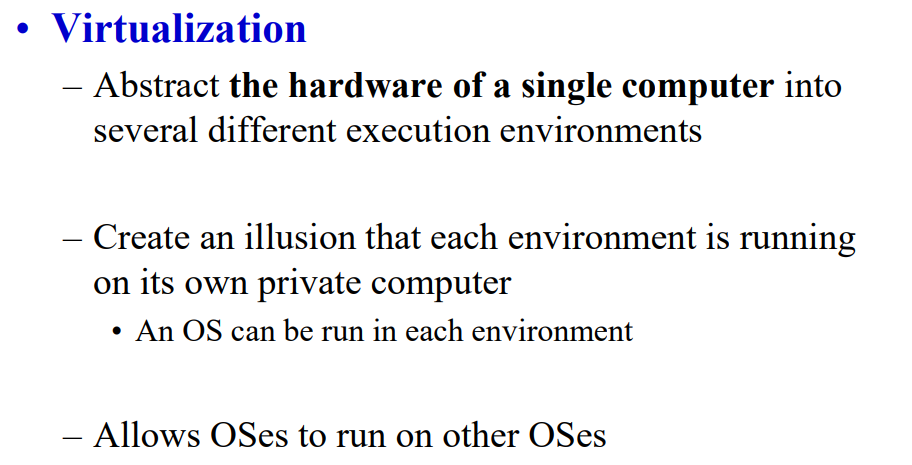

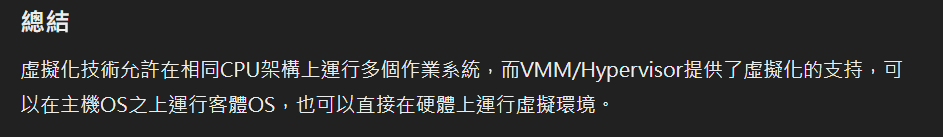

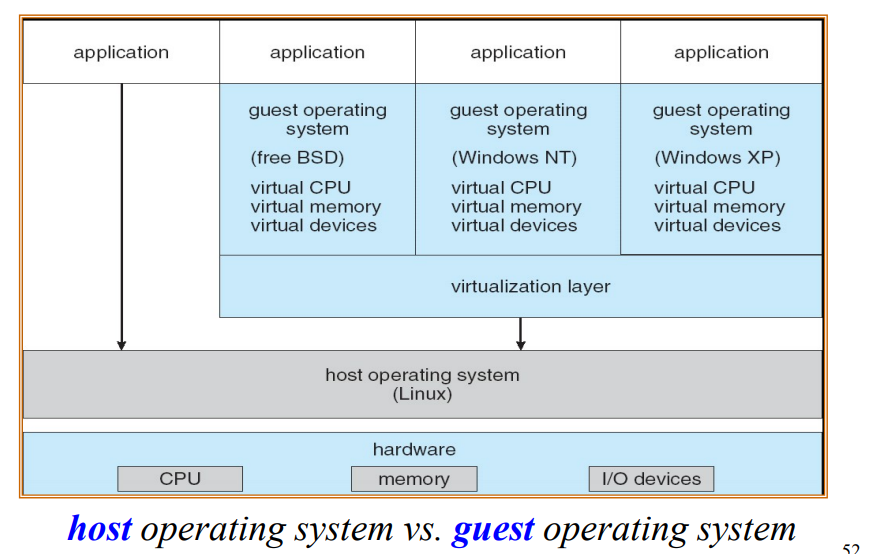

Virtualization
example

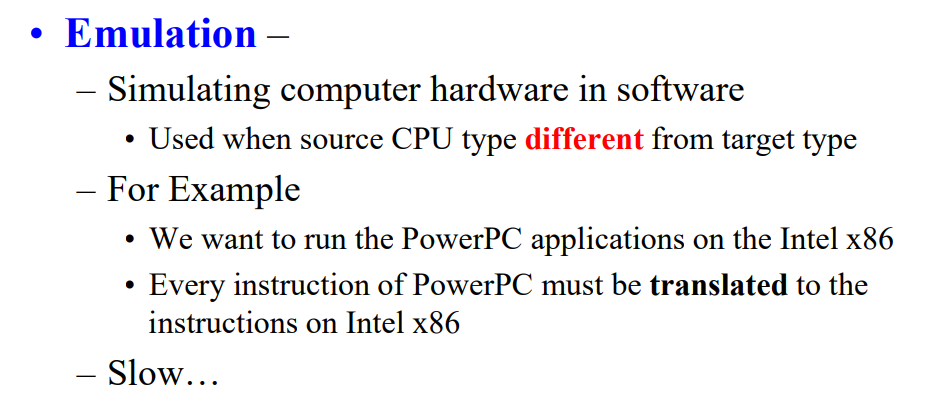

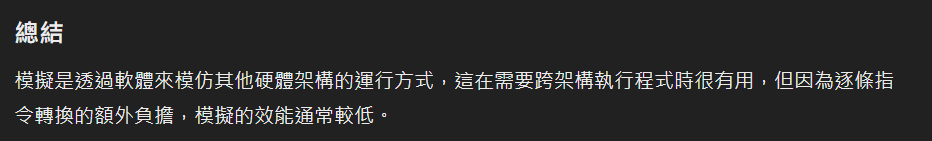

emulation

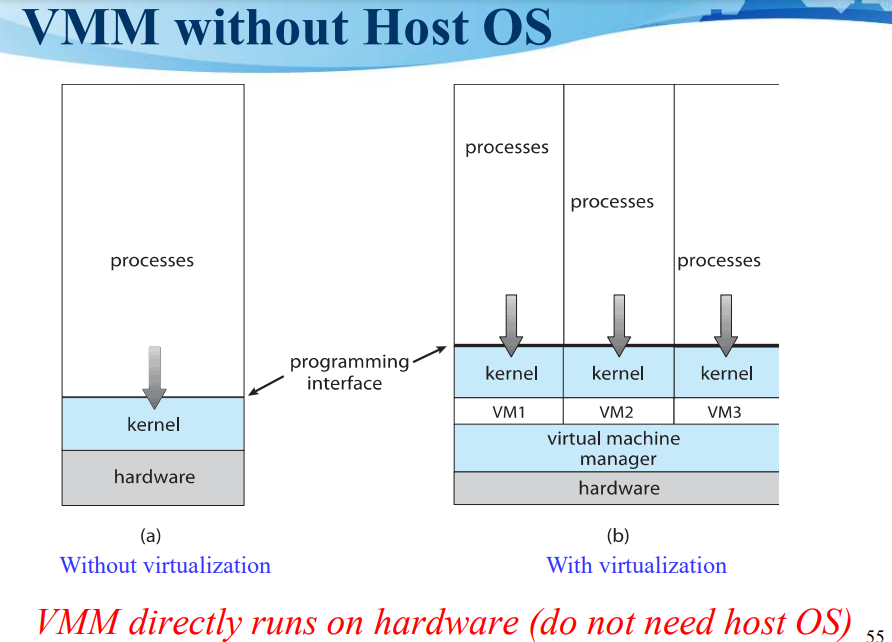

VMM

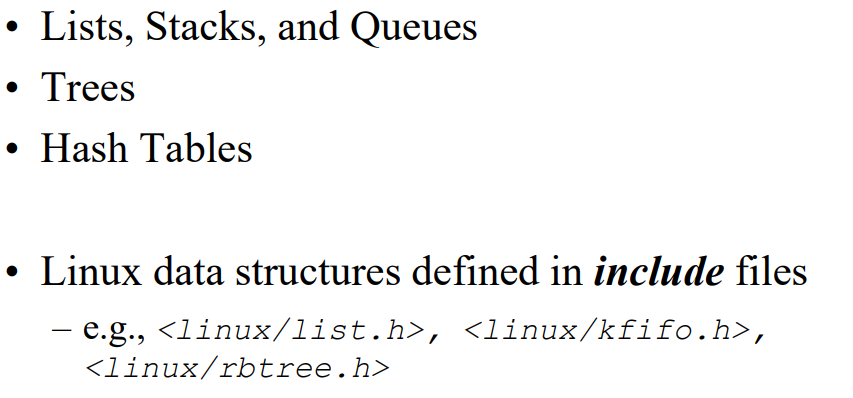

Basic Kernel Data Structures

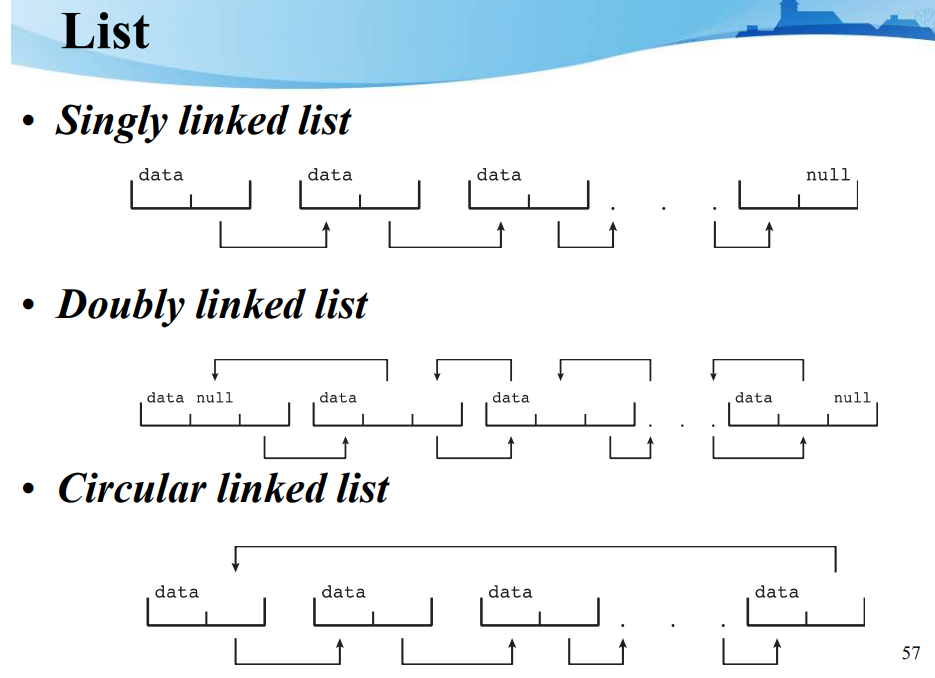

list

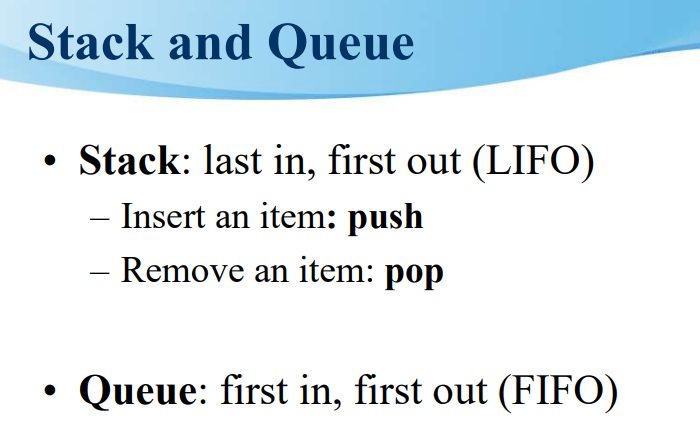

stack and queue

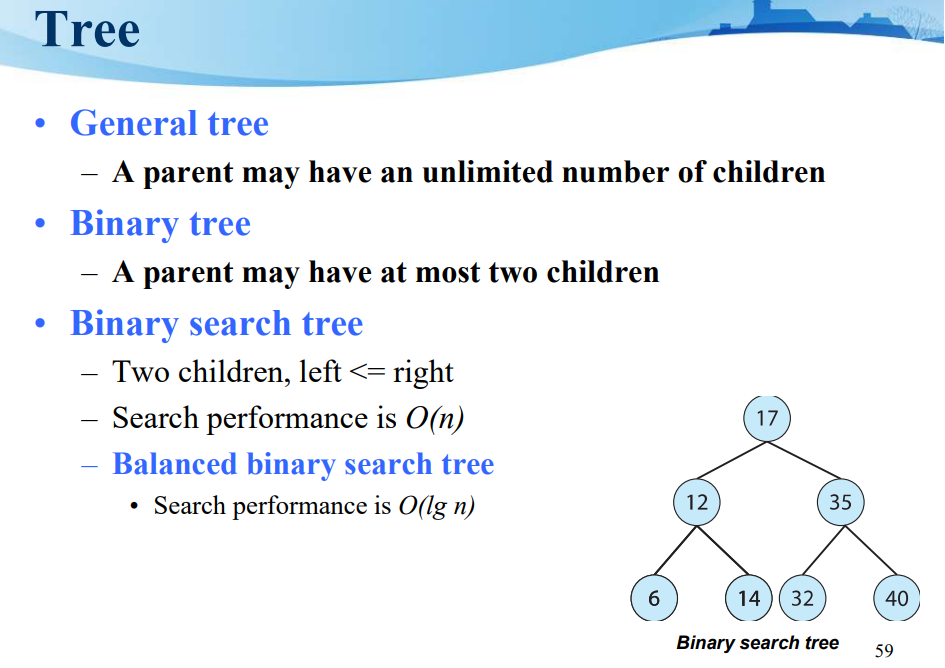

tree

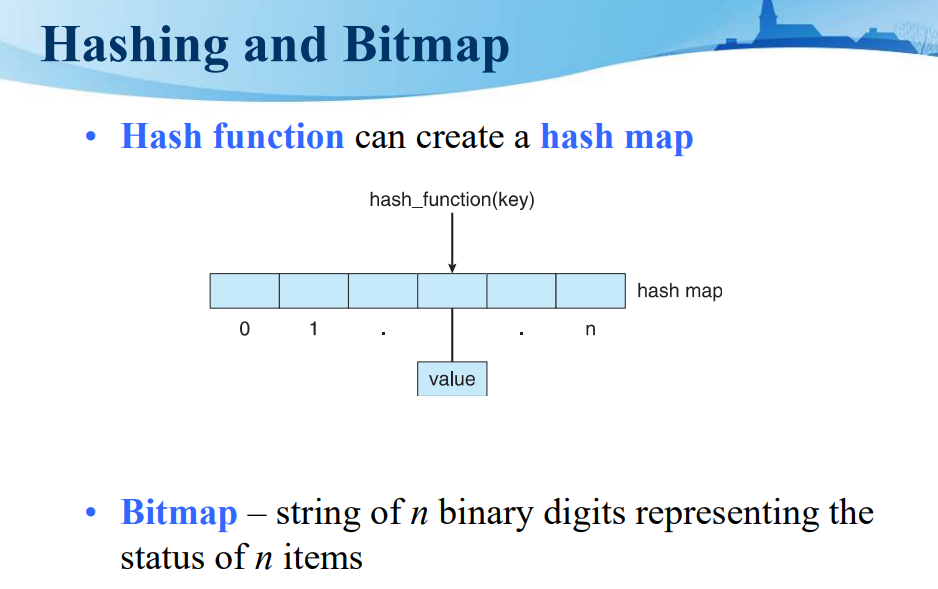

hashing and bitmap
